CNC wood & stone engraving machine - Ritik Engineers
Ritik Engineers offers an advanced CNC Wood & Stone Engraving Machine, designed for precision engraving and cutting applications. Engineered for high-speed performance and exceptional accuracy, this machine is ideal for working with materials such as wood, stone, marble, granite, and composites. It features state-of-the-art technology that enables intricate detailing, deep carving, and smooth finishes. With a robust structure and user-friendly interface, the CNC Wood & Stone Engraving Machine ensures durability, efficiency, and versatility, making it perfect for furniture manufacturing, architectural detailing, artistic engravings, and industrial applications.
Advantages of Ritik Engineers' CNC wood & stone engraving machines
- High Precision: Accurate cuts with minimal kerf for superior edges.
- Fast Cutting: Increases production efficiency.
- Versatile: Works with wood, plastics, and metals.
- Cost-Effective: Faster processing reduces material wastage.
- Easy to Operate: User-friendly interface with automation.
- Durable: High-quality components ensure longevity.
- Efficient Welding: Fiber Welding reduces heat-affected zones.
Applications
- Woodworking: Cutting and engraving for furniture.
- Signage: Creating 3D signs and logos.
- Automotive: Metal welding for strong joints.
- Electronics: Cutting and engraving circuit boards.
- Manufacturing: Prototyping and product development.

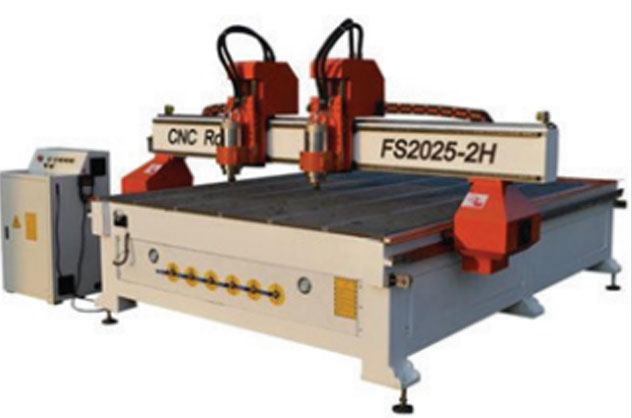

Double Spindle CNC
Machine
| Specifications | |
|---|---|
| X, Y & Z Axis Travel | 1500 X 3000 X 300 mm (Customizable options available) |
| Spindle Power | 2 x 6 KW Water Cooling Spindles (Options: 4.5 KW, 7.5 KW) |
| Rotary Axis (option) | 300 mm (diameter) 2500 mm |
| Motor for X, Y, and Z | AC Servo Motor / Stepper Motor |
| Working Voltage | 380V/50HZ/60HZ, 3PH. Option: 220V, 3PH |
| Max. Working Speed | 24000 RPM |
| Working Accuracy | ±0.02mm/300mm |
| Table Surface | T-Slot & Vacuum Table |
| Control System | DSP / Mach3 / NC Studio |
| Cooling System | Water Cooling for Spindle |
| Weight | 3200 kg |

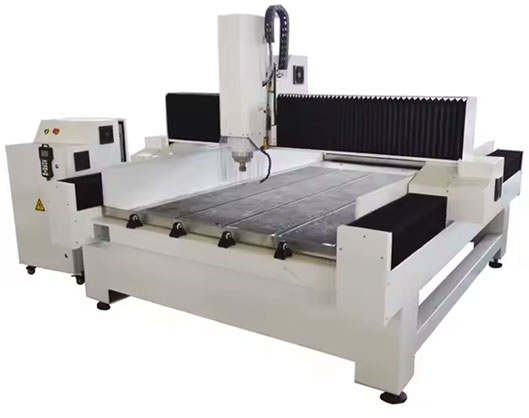

Marble CNC Engraving Machine
Cutting Machine
| Specifications | |
|---|---|
| X, Y & Z Axis Travel | 1300 X 2500 X 300 mm (Customizable options available) |
| Spindle Power | 5.5 KW, 6 KW, 7.5 KW Water Cooling Spindle (Options) |
| Rotary Axis (option) | 300 mm (diameter) 2500 mm |
| Motor for X, Y, and Z | Stepper Motor / AC Servo Motor |
| Working Voltage | 380V/50HZ/60HZ, 3PH. Option: 220V, 3PH |
| Max. Working Speed | 24000 RPM |
| Working Accuracy | ±0.02mm/300mm |
| Table Surface | Heavy-Duty T-Slot Table |
| Cooling System | Water Cooling System |
| Weight | 3000 kg |

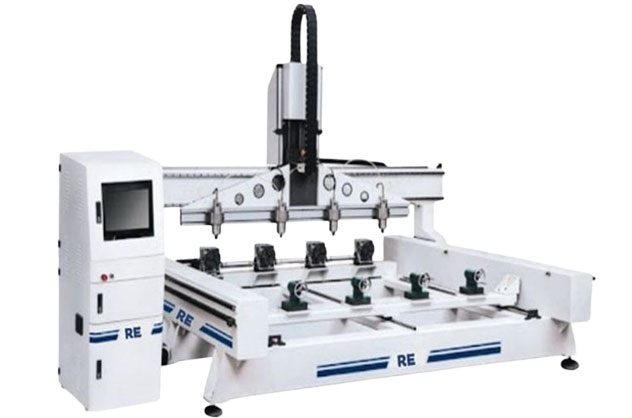

CNC Wood Rotary Machine
| Specifications | |
|---|---|
| X, Y & Z Axis Travel | 1500 X 3000 X 300 mm (Customizable options available) |
| Rotary Axis (Diameter x Length) | 300 mm x 2500 mm (Customizable) |
| Spindle Power | 5.5 KW, 6 KW, 7.5 KW Water Cooling Spindle (Options) |
| Motor for X, Y, Z, and Rotary Axis | AC Servo Motor / Stepper Motor |
| Working Voltage | 380V/50HZ/60HZ, 3PH. Option: 220V, 3PH |
| Max. Working Speed | 24000 RPM |
| Working Accuracy | ±0.02mm/300mm |

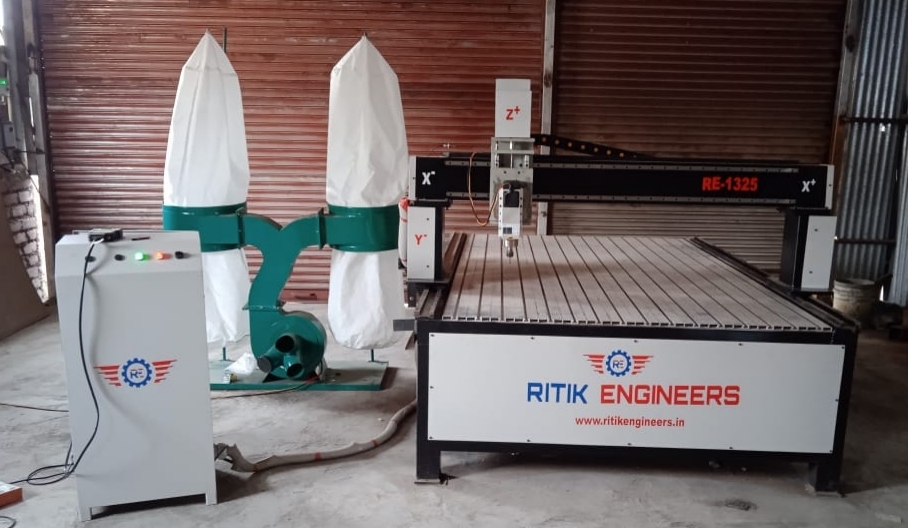

CNC Wood Pattern Router Machine
| Specifications | |
|---|---|
| X, Y & Z Axis Travel | 1500 X 3000 X 400 mm (Customizable options available) |
| Spindle Power | 6 KW, 7.5 KW, 9 KW Air/Water Cooling Spindle (Options) |
| Motor for X, Y, and Z | AC Servo Motor / Stepper Motor |
| Working Voltage | 380V/50HZ/60HZ, 3PH. Option: 220V, 3PH |
| Max. Working Speed | 24000 RPM |
| Working Accuracy | ±0.02mm/300mm |
| Table Surface | T-Slot & Vacuum Table |
| Control System | DSP / Mach3 / NC Studio |
| Cooling System | Water Cooling / Air Cooling Spindle |
| Dust Collection System | Dual-Bag High-Power Dust Collector |
| Weight | 3800 kg |
