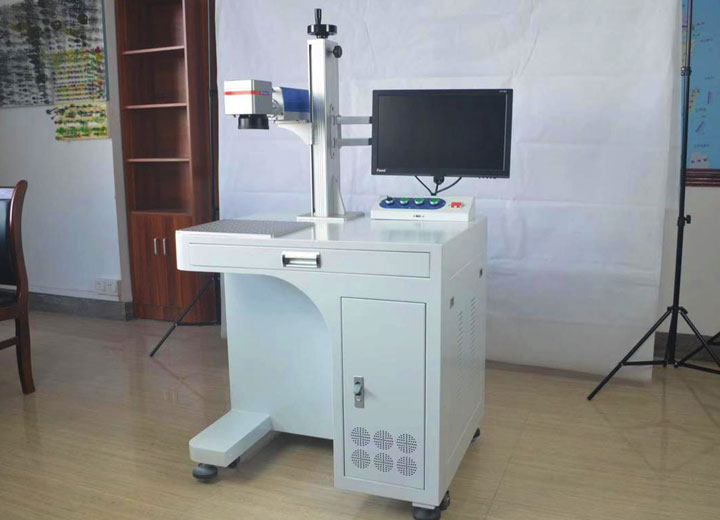

Fiber Laser Marking Machine
Ritik Engineers offers a state-of-the-art Fiber Laser Marking Machine, designed to provide high-precision, high-speed marking solutions for a wide range of materials. This advanced technology utilizes fiber laser technology to create permanent, clear, and high-contrast marks on metals, plastics, ceramics, and other materials. The machine is ideal for applications that require durable markings, such as serial numbers, logos, barcodes, and QR codes, all while ensuring minimal maintenance and energy consumption.
Advantages
- High Precision: Micron-level accuracy for intricate marks.
- Fast Marking: Quick processing boosts productivity.
- Durable Marks: Permanent and resistant to wear.
- Low Maintenance: Minimal upkeep required.
- Eco-Friendly: Low energy consumption and no consumables.
- Non-Contact: Prevents material damage with no physical contact.
Applications
Widely used in electronic part and component, electrical engineering, electrical appliance, telecommunication product, car and motorcar spare part, instrument and meters, plastic case, aviation and aerospace, military product, hardwareitting and accessory, facility, measuring implement, cutting tool, sanitary appliance, stationery, medicament, food and beverage, make-up, medicine packaging, medical instrument, clock and jewelry, light-through key board, solar PV, and craft, etc.
Widely suitable for various metals, alloy, metallic oxide materials and some non-metallic materials(silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, printing ink, plating, spraying, and coating film, etc.)

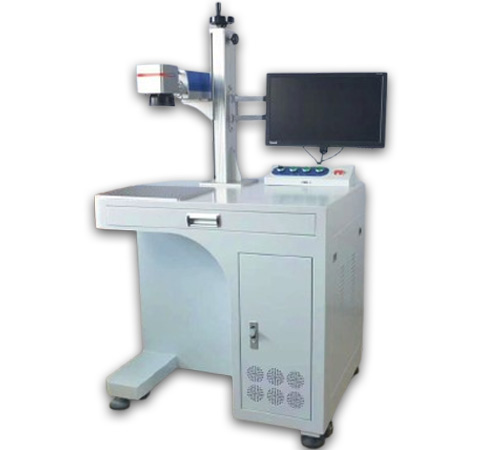

Fiber Laser Marking Machine
RE 3015L
| Specifications | |
|---|---|
| Model | Fiber Laser Marking Machine |
| Laser Wavelength | 1064nm |
| Laser Power | 20W, 30W |
| Marking Area | 110mm x 110mm(standard) 200mm x 200mm (Optional) 300mm x 300mm (Optional) |
| Laser Device | MAX |
| Marking Depth | 0.05 ~ 0.5mm |
| M2/Beam quality M2 | <1.2 |
| Min. Letter | 0.2mm (0.008") |
| Power supply | 220V / 50Hz / 1KVA |
| Min. Line Width | 0.01mm (0.0004") |
| Marking line speed | 7000 MM/S (Adjustable depending on material) |
| Cooling Method | Air cooling |
| Lead Time | 7-10 days |
| Warranty | One year |
Product Oveview

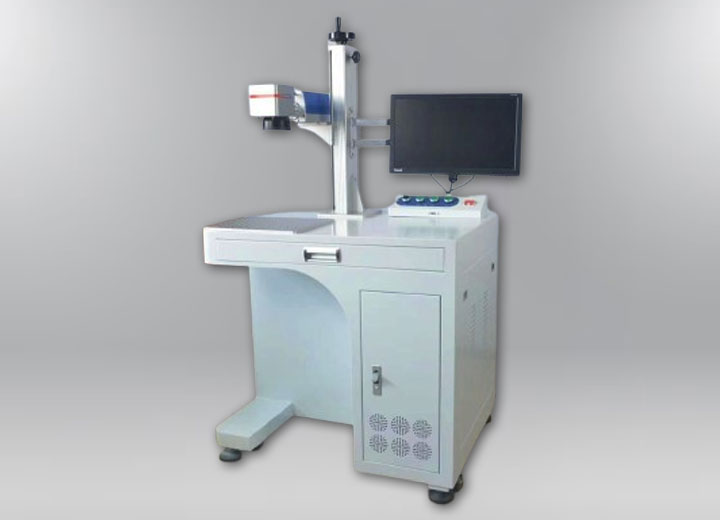

Explore Our CNC Fiber Laser Marking Machine
